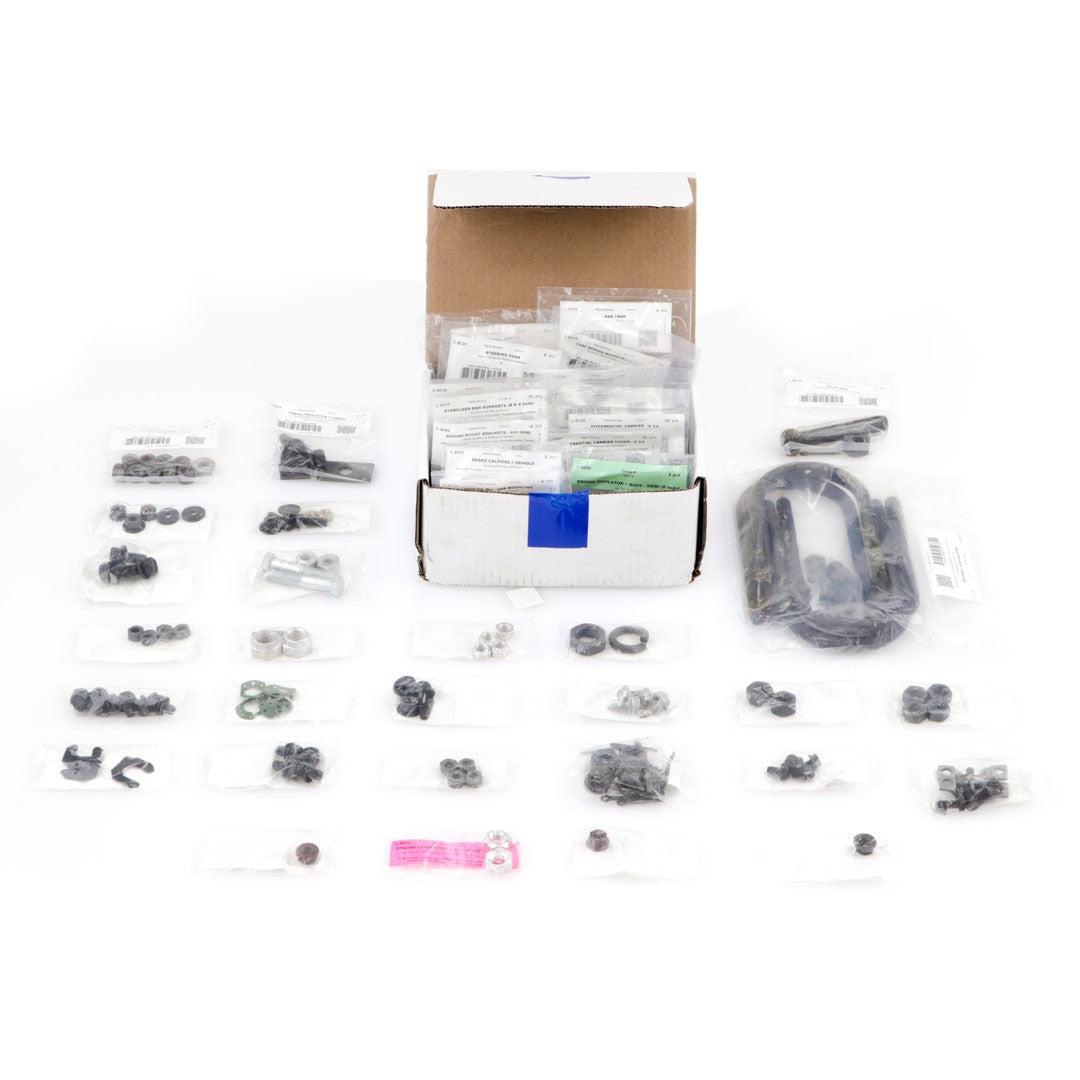

70 E-Body 318/340 with Disc Brakes Master Chassis Hardware Kit (264pcs)

70 E-Body 318/340 with Disc Brakes Master Chassis Hardware Kit (264pcs)

H-70E-SBDC

$930.98 CAD
$930.98 CAD
Sale Sold out

The authentic hardware you need to correctly reassemble the engine components which attach to the long-block. Most fasteners are either meticulous reproductions or New Old Stock. Most items are made in USA to the same standards required by Chrysler.

Master Chassis Kit Includes:
Part# Application Notes Pcs
C-8084 Engine Insulator > Eng Brkt - exc HEMI HX Nuts, Coni WA's 4
C-8087 Engine Mount Brackets - 273/318/340 HX Bolts, 5/8 AF Nuts, Flat WA's 18
C-8088 Engine Insulator > Body - V8 exc HEMI HX Bolts "38", Coni WA's 4
C-8094 Trans Insulator > Trans HX Coni Sems, SQR WA's 4
C-8104 Wheel Cylinders (2) w 1/2-20 HX Flng Screws 4
C-8105 Strut Rod > K-Frame (B & E body) 5/8-11 Lock Nuts 4
C-8106 Driveshaft > Flange Straps, HX Bolts, Split WA's 10
C-8110 Shocks (Fr) - Lwr Mounting 7/16 HX Bolts "TR" or "D", Lock Nut 4
C-8111 Stabilizer Bar Center Supports HX Bolts "H", Coni Sems, Lock Nuts 16
C-8112 Leaf Spring Mounting @ Front Hub Bolts, Coni Keps 16
C-8113 Shackles - Nuts Only HX Nuts 4
C-8115 Axle Housing > Springs 1/2-20 x 7.12 U-Bolts, Lock Nuts 12
C-8117 Suspension Bumper Brkt > 8 3/4 Axle HX Coni Sems "Anchor" 2
C-8120 Shocks (Rr) - Lwr Mounting HX Nuts ONly 2
C-8121 Brake Calipers >Spindle HX Coni Sems 4
C-8122 Brake Rotor Shields HX Coni Sems 6
C-8123 Shocks (Rr) - Urp Mounting HX Bolts, Lock Nuts 4
C-8124 Steering Gear (B body) HI-HX HD Bolts, Split WA's 6
C-8125 Brake Caliper Tube Brackets HX Coni Sems 4
C-8131 Gas Tank J-bolts, Lock Nuts 4
C-8133 Differential Carrier - 8 3/4 Nuts w/ Nylon Patch 10
C-8175 Suspension Bumpers (Fr) Hug-Lok Nuts 4
C-8177 Brake Drum Retainers 1/2" Stud, Green Push on Retain 6
C-8178 Steering Linkage Tri-Slot Nuts, Cotter Pins 12
C-8199 Trans Crossmember HX Bolts, Coni Keps, Flat WA's 16
C-8202 Brake Cable Tension Adjuster Flange Lock Nut Only 1
C-8203 Proportioning Valve > Apron Red Flange Lock Nut 1
C-8212 Control Amrs (Upr) Cam Bolts, Washers, Nuts 16
C-8214 Leaf Spring Mounting @ Front "H" Marked Bolts, Marsden Nut 4
C-8215 Idler Arm "TR" Hex Bolt, Tri-Slot Nut, Pin 3
C-8216 K-Frame > Body Special Hex Coni Sems 4
C-8222 Axle Retaining Nuts HX Lock Nuts, Flng Nuts 10
C-8224 Ball Joint w/ Dsic Brakes HX Bolts, Sloted Nuts, Pins 12
C-8226 Pitman Arm Nut, Split WA 2
C-8228 Brake Hoses > Bracket Clips U-Clips 3
C-8330 Parking Brake Control > Body HX Coni Sems, Coni Keps 3
C-8332 Master Cylinder HX Lock Nuts 4
C-8334 Master Cylinder Support Plate Coni Keps, EXT Keps, Sealer 4
C-8336 Brake Booster HX Lock Nuts 4
C-8338 Accelerator Pedal (B & E body) Coni Keps, Coni Sems 6
C-8339 Trans Insulator > Crossmember HX Bolt, Flat WA, Lock Nut 3
C-8440 Suspension Bumpers, (Rr) HX Flng Screws 4
